รายละเอียด

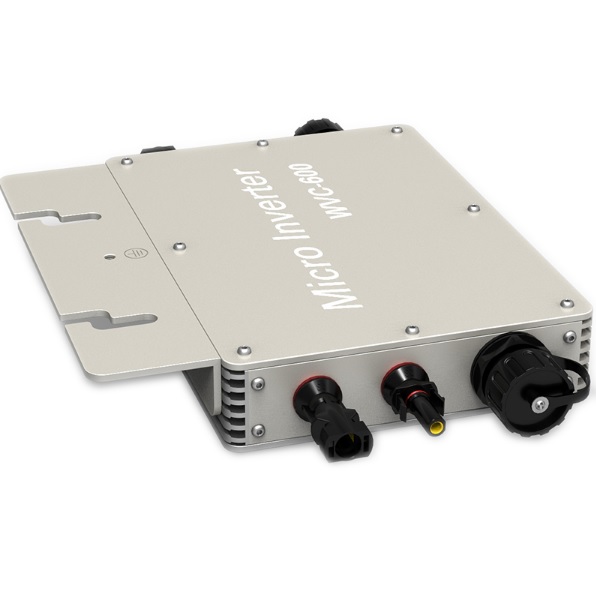

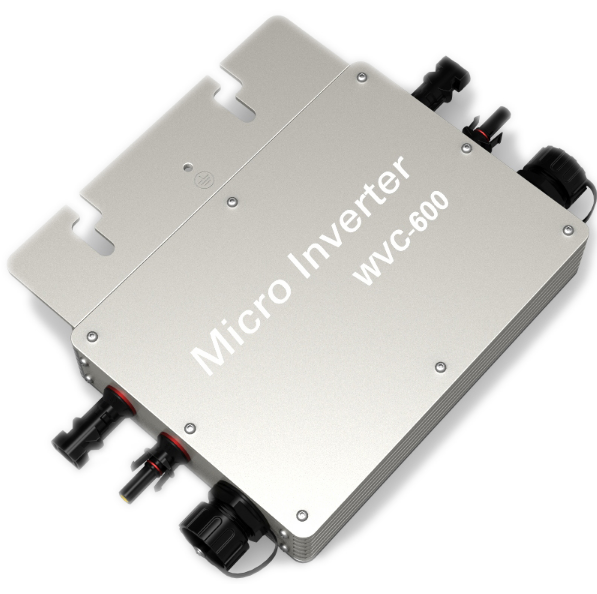

ไมโครอินเวอร์เตอร์ ออกแบบมาสำหรับวงจรขนาดเล็ก สามารถติดตั้งหลังแผงโซลาร์เซลล์ แล้วแปลงเป็นไฟ AC ทันที เช่นเดียวกับอินเวอร์เตอร์ออนกริดทั่วไป มีช่องต่อสายจากแผงโซลาร์เซลล์ สำหรับแผง 300วัตต์ จำนวน 2แผง กันฝุ่นกันน้ำด้วยมาตรฐาน IP65
เหมาะสำหรับบ้านหลังเล็กใช้ไฟไม่มาก ระบบการแปลงไฟแบบ MPPT
*รับประกัน 1 ปี
WVC600 Series Using IP65 waterproof streamline design, Can effectively prevent rainwater on the surface erosion, Built-in high-performance Maximum Power Point Tracking(MPPT)Function,Better able to track changes in the solar luminosity and control different output power, Effectively capture and collect sunlight. AC electric power transmission using the reverse transmission technology, Is one of our patented technology, The inverter output power can provide load priority use, Extra electricity to the grid, Efficient use of the inverter to the power emitted, Electricity transmission rate of up to 99%.

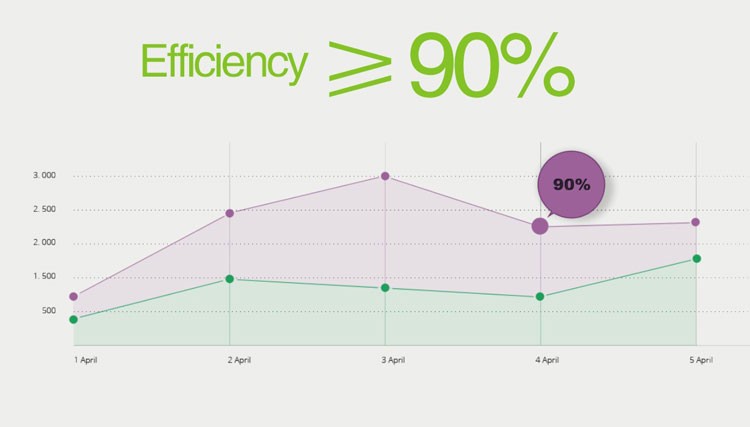

High Efficiency & Best Cost-Effectiveness

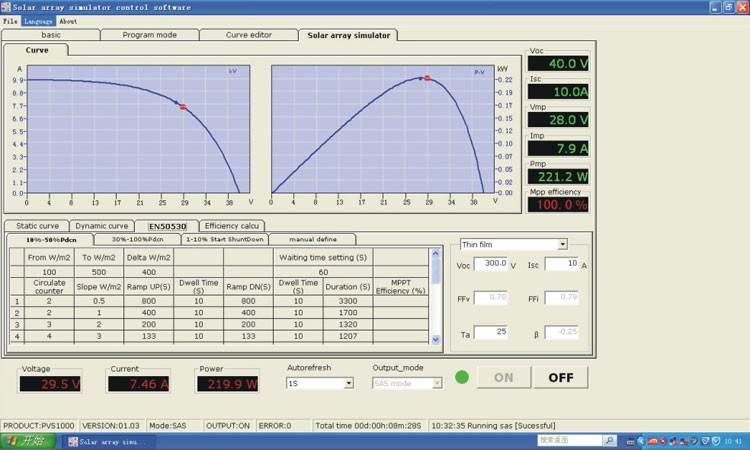

Intelligent MPPT & Weak Light Tracking Algorithm

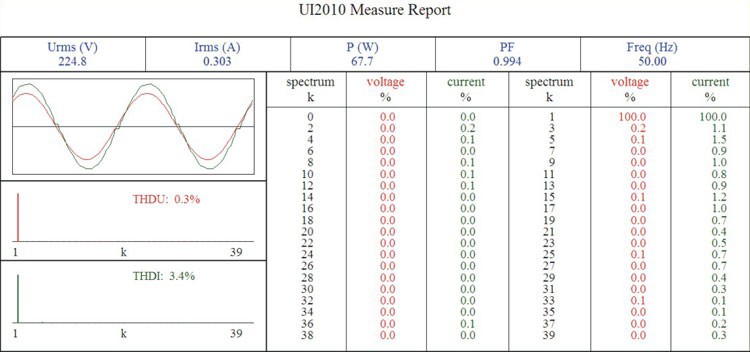

Met The Grid Products Certification Standard

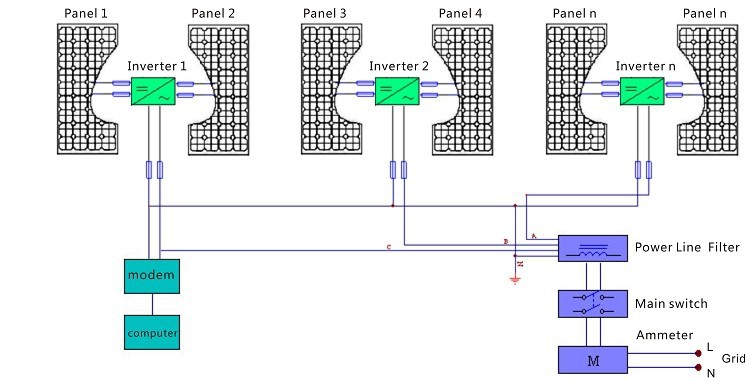

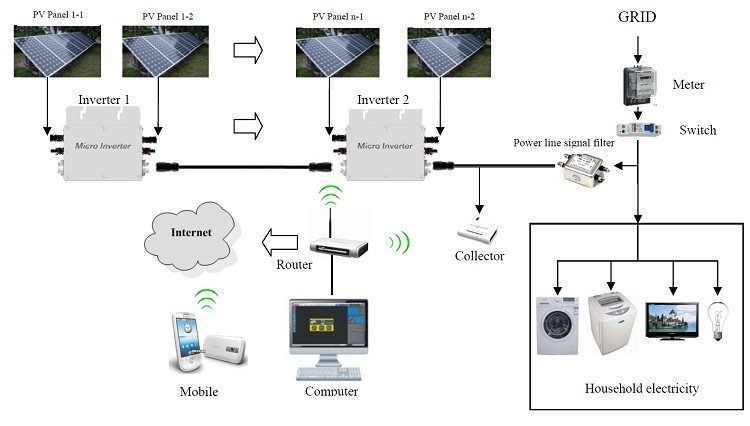

System Block Diagram & Application

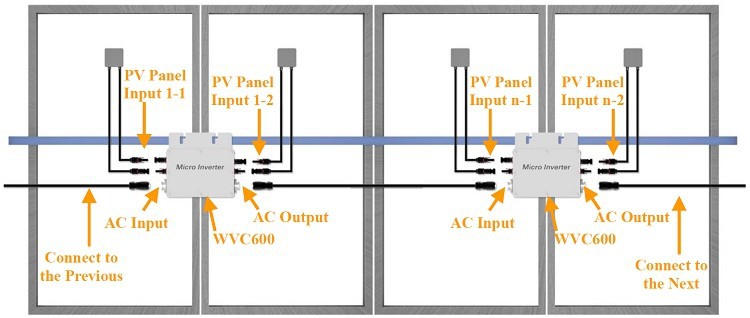

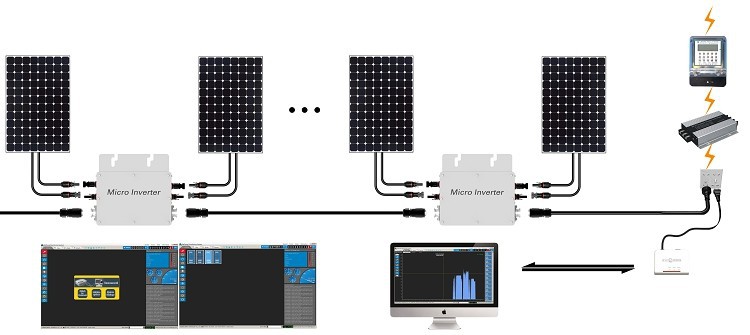

In order to achieve higher power, we can use this inverter in stack. For example: 10 pcs of WVC600 grid tie inverter used in stack can achieve 6000W. And the stacking number is unlimited.

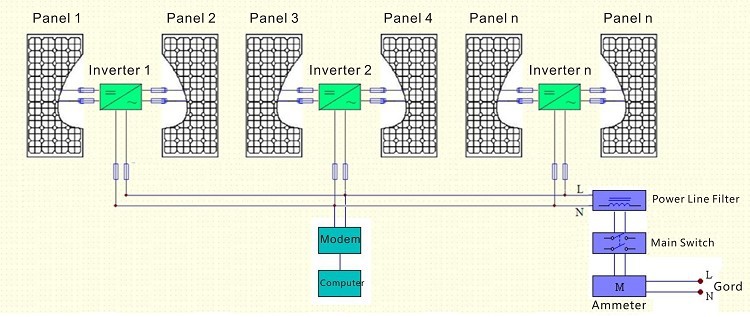

Single-Phase & Three-Phase Electrical Schematics
Notes
- Please install the inverters according to the user manual and connnet the groud safety.
- Forbid openning the shell with non-professional person ,only qualified maintenance person can repair the product .
- The inverter should be installed in the low humidity and well ventilated place,and remove the flammable things surrounding the inverter for avoiding overheating .
- Avoid children play when the inverter is working.
- Ensure the DC input and AC output when connect with PV.
- The Vmp and Voc of PV should be fuit for the prodcut for get output max.
